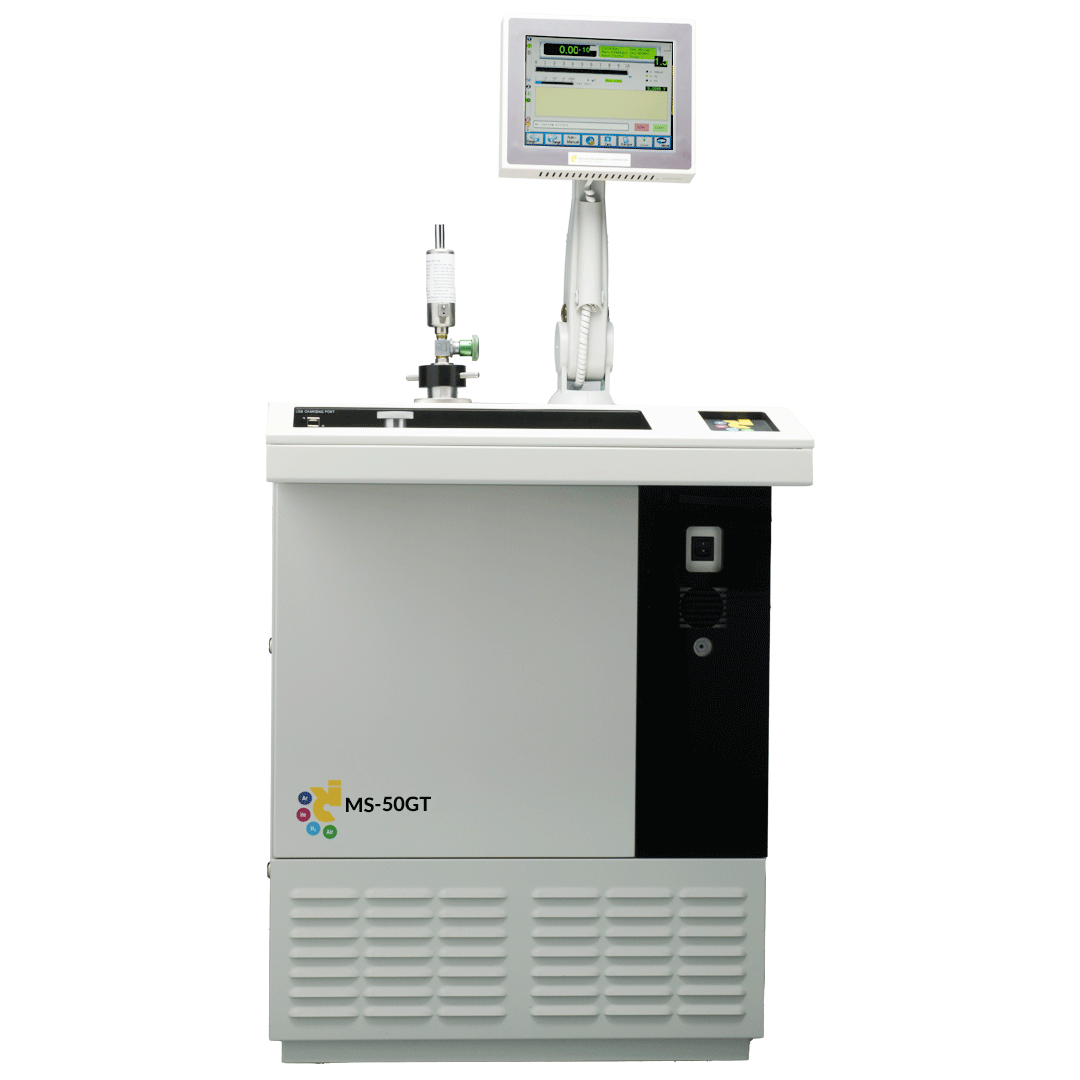

MS50GT device, highlighting its compact design, display screen, and control interface

MS-50GT LEAK TESTING STATION

HIGH SPEED PRODUCTION CONSOLE – HELIUM LEAK DETECTOR

The MS-50GT is a highly technical system that incorporates many sophisticated technologies. In view of this, every effort has been made to automate the unit’s operation and maintenance procedures. The MS-50GT is an automated high-speed production console leak detector featuring three flow modes which provide flexibility and maximum productivity for application-specific leak testing.

It also meets the stringent requirements for robustness, reliability and ease of maintenance that are essential in any industrial environment.

APPLICATIONS

FEATURES

CHARACTERISTICS

FACTSHEETS

APPLICATION

  • AUTOMOTIVE

    • Exhaust System
    • Cooling Circuit
    • Engine
    • Battery
    • Oil Pan

  • AIR CONDITIONING

    • Condenser Coils
    • Evaporator Coils
    • Compressor Seals
    • Refrigerant Tubing
    • Valve and Joint

  • MEDICAL

    • IV Bag
    • Implantable Device
    • Syringe and Vial
    • Medical Pouch
    • Packaging

  • AEROSPACE

    • Fuel System
    • Hydraulic System
    • Oxygen System
    • Pressurized Cabin
    • Cooling System

FEATURES

  • GENERAL

    • Sensitivity, vacuum*: 3.0 x 10-11 (atm-cc/sec)

    • Sensitivity, sniffing: 1.0 x 10-8 (atm-cc/sec)

    • Leak Measurement Range: 3.0 x 10-11

    • Leak Ranging: Auto/Manual

    • Startup Time: Less than 3 minutes

    • Response Time *: <2 direct <2.5 reverse

    • Resolution for 4He*: 14 at mass 4

    • Gross Test Time (with UFT Option): – 3 (100 Torr)(seconds)

    • Fine Test Time (with UFT Option): – 10 (25 mTorr, 10^-10 atm-cc/sec)

    • Mass Spectrometer Tube: 180° deflection; dual-magnetic sector

    • Auto-tuning

    • Auto-calibration: Internal; External – auto

    • Auto-zeroing: Several zeroing functions modes for background suppression

    • Reject set-point

    • Built-in calibrated leak: 10-08 range

    • NIST traceable

    • Temperature compensated

    • Scan/Descan

    • Filaments: 2 Thoria Coated Irridum

    • Testable Masses: 3+4

    • Background Compensation: Automatic

    • Maximum Operating Pressure: 100 mTorr, 10 Torr reverse

    • Display/Interface: 10 (25.4) LCD flat panel display, capacitive touch-screen / Graphical

    • User Interface (GUI Units: cc/second, mbar*l/second, Pa*M3/second

    • RS-232C

    • Software: 50 programmable test recipes; Data Link optional

Measurement Characteristics



Sensitivity Vacuum Sensitivity Sniffing Startup Time
3.0 x 10-11

(atm-cc/sec)

 10-3  – 10-5

(atm-cc/sec)

 Less than 3 minutes
Interface displaying pressure and leak rate both graphically and numerically, alongside system settings and test parameters

SPECIFICATIONS

  • AVAILABLE MODELS

    • Dual Port

    • Ultrafast (UFT)

    • Oil-based

    • Dry pump

    • High sensitivity

    • Argon gas
Exploded view of a mechanical assembly with labeled components including pipes, valves, and connectors
Technical Specifications
Power 115/50-60/30; 230-240/50-60/15
100/50-60/30 V/Hz/A
Dimensions (W x H x D): 25.75 x 30.625 x 35.25
(65.40 x 77.79 x 89.54)
Weight 475 lbs,  215.45 kg
Vacuum Mode Direct, reverse or combination, gross testing
Roughing Pump 16 direct drive (cfm)
Test Port Connection 1.125 (inches)
High Vacuum Pump 53 L/sec
Vacuum Gaughing Pirani: Test Port and Foreline
Ion: Hihg Vacuum
Cold Trap MS-50GT – N/A
MS-50GT Dry – N/A
Test Cup, UFT
Option UFT(Ø x D)		 Dimensions (in mm)
W344*H395*D618

DOCUMENTATION


PDF Icon
USA Flag
Datasheet (English)

PDF Icon
Mexico Flag
Datasheet (Spanish)

📑 User Manuals (Request Access)
